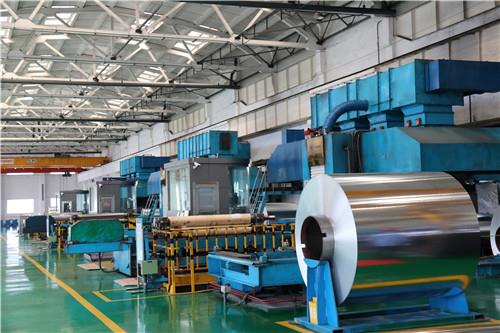

Lithium battery aluminum foil is widely used as cathode current collector of secondary Li-ion batteries as well as super capacitors. The foils have excellent performance in cell manufacturing. Equipped with advanced foil mills, Henan Henry can manufacture 1060, 1070 and 1235 alloy lithium battery aluminum foil with excellent surface performance at a lower price.
Lithium battery aluminum foil is widely used as cathode current collector of secondary Li-ion batteries as well as super capacitors. The foils have excellent performance in cell manufacturing. Equipped with advanced foil mills, Henan Henry can manufacture 1060, 1070 and 1235 alloy lithium battery aluminum foil with excellent surface performance at a lower price.
Alloy | Temper | Thickness (mm) | Width (mm) | Tensile Strength (Mpa) | Elongation | ||||||||||||
1050 1060 | H18 | 0.012~0.030 | 300-600 | ≥150.0 | ≥1.0 | ||||||||||||
Alloy | Max. % | ||||||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al | |||||||
Each | Total | ||||||||||||||||
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05V | 0.03 | 0.03 | 99.5 | |||||||
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05V | 0.03 | 0.03 | 99.6 | |||||||
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | 0.04 | 0.05V | 0.03 | 0.03 | 99.7 | |||||||
1235 | 0.65 | 0.05 | 0.05 | 0.05 | 0.10 | 0.05V | 0.06 | 0.03 | 99.35 | ||||||||
This high strength Lithium battery aluminum foil provides high conductivity and good corrosion behavior as well as high-quality surface conditioning for processing.
1. Good flexibility of lithium battery aluminum foil
Our aluminum foil is resistant to the expansion and contraction of battery at the time of charge/discharge.
2. Super surface smoothness
The active material to provide the functionality of battery can be applied uniformly.
3. Tight thickness tolerance
Due to its small thickness variation, the coating thickness variation of active material can be suppressed.To raise the output power, the HEV battery has a thinner active material layer than the commercial batteries. The smaller the foil thickness variation, the smaller can be made the thickness variation of the active material.
The versatility of aluminium, which is characterized by low density, high conductivity, recycling capability, formability and corrosion resistance, enables a progressive development of solutions regarding e-mobility, from Li-ion batteries to lightweight design in body-in-white applications.
Ø Cell cover
Ø Cell tab
Ø Cell housing
Ø Module housing
Ø Battery boxes
Ø Battery intergration
1. What is your payment terms?
A: We prefer the payment by TT, L/C, other payment terms can be negotiable.
2. What's your lead time? And the MOQ?
A: Normally the lead time is 30 to 45 days, The minimum order quantity is 1 Ton.
3. What certificates does your company have?
A: We can provide the certification of ISO9001, and the ISO14001, FDA and SGS, RoHS test report, Reach test report.
4. Is it possible to visit company and factory?
A: Sure, we sincerely welcome all the customers to visit us at any time.
5. After-sale service: We have been supplying Aluminum foil for 10 years in the industry. We are committed to provide the best service for our customers.
